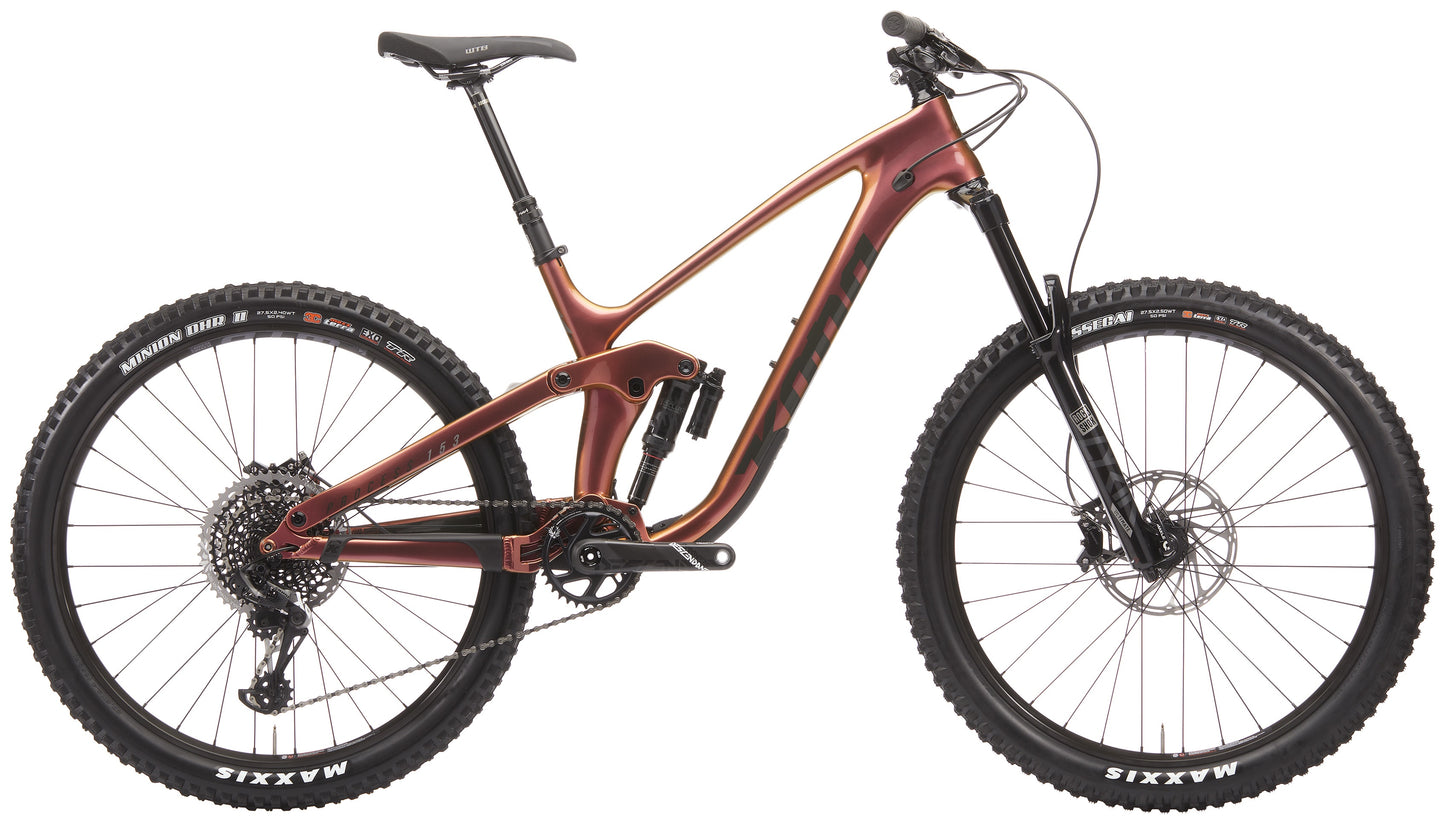

KONA Process 153 CR/DL 27.5" 2020 Mountain Bike

$8,700.00

KONA Process 153 CR/DL 27.5" 2020 Mountain Bike is backordered. We will ship it separately in 10 to 15 days.

The 153 CR DL bikes are Kona’s flagship enduro machines. From punishing EWS race days to party laps at the local trails, the Process 153 CR DL is known for being a seriously fun bike. The carbon chassis is outfitted with an all new RockShox Lyrik Ultimate fork with the RC2 Charger damper and Super Deluxe Ultimate rear shock with RCT damper to keep the ride smooth. A SRAM X01 12-speed Eagle drivetrain and Code RSC brakes are a perfectly balanced combo of pure shred and pure power.



FRAME MATERIAL Kona DH Carbon w/ 6061 Aluminum Chain Stays 153mm Travel
SIZES S, M, L, XL
REAR SHOCK RockShox Super Deluxe Ultimate Trunnion
FORK RockShox Lyrik Ultimate RC2 Charger 2 DebonAir 160mm Tapered 110mm Spacing
CRANKARMS SRAM Descendant Carbon DUB
CHAINRINGS 34t X-Sync Eagle
B/B SRAM DUB PF92
PEDALS n/a
CHAIN SRAM GX-Eagle
FREEWHEEL SRAM X01-Eagle 10-50t 12spd
CHAINGUIDE n/a
F/D n/a
R/D SRAM X01-Eagle
SHIFTERS SRAM X01-Eagle
BRAKE CALIPERS SRAM Code RSC
FRONT BRAKE ROTOR SRAM Centerline 200mm
REAR BRAKE ROTOR SRAM Centerline 200mm
BRAKE LEVERS SRAM Code RSC
HEADSET FSA Orbit 1.5 E ZS
HANDLEBAR Kona XC/BC 35
STEM Kona XC/BC 35
SEATPOST RockShox Reverb w/1x Remote Lever 31.6mm
SEAT CLAMP Kona Clamp
GRIPS Kona Key Grip
SADDLE WTB Volt Pro (Pro 250 size S)
FRONT HUB DT Swiss 370 110x15mm
REAR HUB DT Swiss 370 148x12mm
SPOKES Stainless Black 14g
RIMS WTB KOM Trail i30 TCS
FRONT TIRE Maxxis Assegai EXO TR 3C 27.5x2.5" WT
REAR TIRE Maxxis Minion DHR II EXO TR 3C 27.5x2.4" WT
PAINT COLOR Gloss Prism Rust-Purple w/ Charcoal & Dark Silver Decals
SIZE S M L XL
1 ST LENGTH 385 410 450 485
2 TT LENGTH 573 600 629 668
3 REACH 425 450 475 510
4 STACK 602 607 616 625
5 STANDOVER 702 701 701 700
6 HT ANGLE 66.0 66.0 66.0 66.0
7 HT LENGTH 115 120 130 140
8 ST ANGLE 76.0 76.0 76.0 76.0
9 CS LENGTH 425 425 425 425
10 BB DROP 10 10 10 10
11 BB HEIGHT 345 345 345 345
12 WHEELBASE 1163 1190 1219 1258
13 FRONT CENTER 738 765 794 833
14 FORK LENGTH 552 552 552 552
15 FORK OFFSET 46 46 46 46
